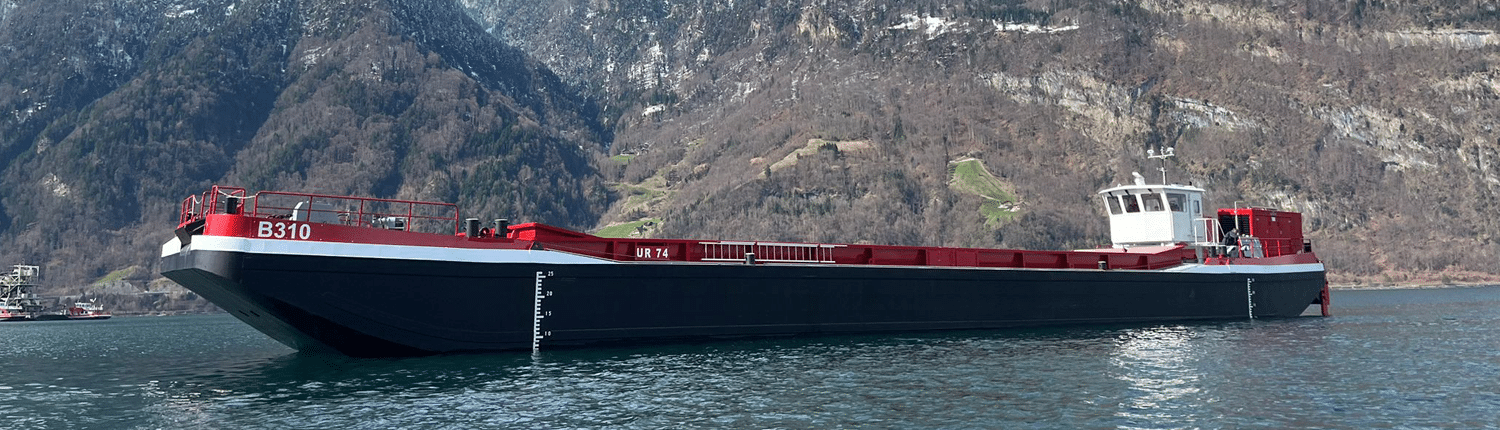

• Propelled 335 m3 split hopper barge dismountable

    Split hopper barge propelled dismountable 335 m3 Baars
  • Split hopper barge 1000 m2 Baars Sliedrecht
  • splijtbak 850 m3 Baars
PreviousNext
1234567

Split Hopper Barges for water transport of dredging sludge, sand and soil

Hire or purchase with delivery at your project location

You can choose from a fleet of 20 self-discharging split barges with a volume of 160 m3 to 1,100 m3. Consider our attractive, innovative options like self-propelled split barges and an environmentally-friendly hybrid solution for opening and closing the barges.

  • Fleet always updated
  • Split  hopper barges can be disassembled and transported by road
  • Sustainable energy source for opening and closing barge
  • Purchase or rental
  • Seaworthiness IACS Certificates for split hopper barges

Want to know more? Need an estimate? Contact us!
rental@baarsbv.com +31(0)184-415566



Request for quotation
Cycluscalculator
Length (m) Breadth (m) Depth (m) Draught unloaded (m) Draught loaded (m) Loading capacity (ton) Volume (m³) Split hopper barge no. Built
31.34 7.04 2.24 0.58 1.91 258 160 B114 / B116-B121 (7 pcs.) 2020, 2024, 2025
37 7.3 2.46 0.66 2.46 400 200 B201-B202 (2 pcs.) 1999 / renovated 2025
43.84 7.99 2.8 0.66 2.04 426 335 B305-B306 (2 pcs.) 2019
49.24 9.04 3.4 0.78 2.96 826 450 B401-B402 (2 pcs.) 2015
54.04 9.29 3.59 0.83 3.16 1057 600 B601-B604 (4 pcs.) 2014, 2025
61.8 10.44 3.85 0.8 2.86 1208 844 B801-B802 (2 pcs.) 2012, 2013
62.9 11.2 4 1.085 3.515 1611 900 B901-B902 (2 pcs.) 2024
62.4 11.4 4.4 0.9 3.88 1899 1000 B1002-B1009 (2 pcs.) 2017, 2025
49.85 12.45 4.7 0.93 4.08 1818 1100 B1101-B1102 (2 pcs.) 2002
  • We deliver the split hopper barge to your project location anywhere in the world.
  • Our dismountable split barges can be transported by road in four pieces. Ideal for projects on lakes or locations with difficult access.
  • For an accurate price estimate for domestic water transport, it is important to know the draught and the navigable width and height.
  • For sea transport, take into account the fees at the destination port.
  • We provide a budget price for costs starting from departure from Sliedrecht. This includes the cost of a tow certificate, a fit for tow certificate, service vessels and an agent.

Additional useful information about transporting split barges:

https://www.vaarweginformatie.nl/frp/main/#/geo/map

https://sea-distances.org/

Questions?

Call us on +31 184 – 415566. We’ll be glad to help.
